How to Choose Equipment for Tablet Coating?

Choosing the right equipment for tablet coating is a process decision, not a simple purchasing exercise. A shiny machine can still produce uneven color, twinning, or fragile tablets. The real test appears inside the pan, where spray rate, inlet temperature, airflow, and tablet movement must remain balanced.

The FDA’s Process Analytical Technology guidance encourages manufacturers to control critical process variables through measurement and scientific understanding. ISPE’s Baseline Guide Volume 5 also emphasizes equipment design, cleaning, containment, and scale-up. Recent market analyses from Grand View Research and Mordor Intelligence show continued investment in pharmaceutical manufacturing equipment, driven by automation, quality demands, and flexible production. However, market growth alone cannot prove that one coater fits every formulation.

“Quality cannot be tested into products; it should be built in or should be by design,” said Janet Woodcock, former director of the FDA’s Center for Drug Evaluation and Research. Her statement is highly relevant when evaluating equipment for tablet coating. Buyers should examine pan capacity, baffle geometry, spray-gun arrangement, drying-air control, exhaust handling, and cleaning access. Smaller details matter. A poorly positioned nozzle may leave a pale band across the tablet bed. Weak airflow control may extend drying time or damage the film.

Experience also matters. Ask suppliers for scale-up evidence, cleaning validation support, uniformity data, and operator training records. Compare performance using your own tablets, not only demonstration samples. No selection is perfect. Even experienced teams can overlook maintenance access or future product changes. A careful evaluation therefore connects equipment capability with formulation behavior, regulatory expectations, and real production conditions.

Table of Contents [Hide]

1 Define the Tablet Coating Process and Equipment Requirements

2 Match Coating Equipment to Tablet Type and Production Scale

3 Evaluate Key Equipment Features, Capacity, and Process Control

4 Compare Spray Systems, Drying Methods, and Material Compatibility

5 Assess Safety, Maintenance, Compliance, and Total Operating Cost

Define the Tablet Coating Process and Equipment Requirements

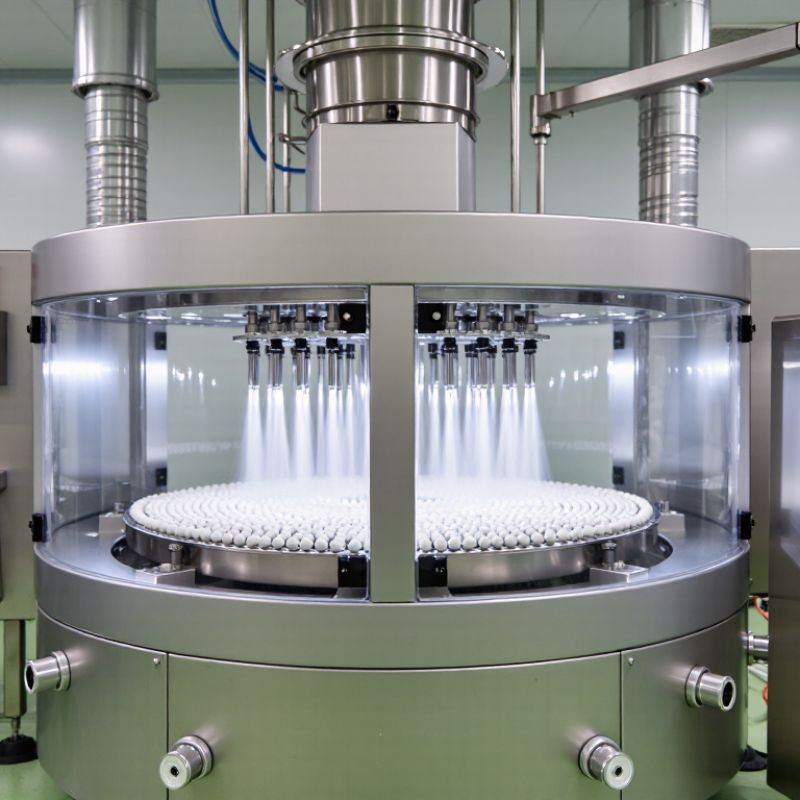

How to Choose Equipment for Tablet Coating?

Define the tablet coating process before selecting any equipment. Identify the coating type, target weight gain, tablet shape, and batch size. Film coating may require controlled spraying, drying, and exhaust airflow. Enteric coating needs tighter temperature and moisture control. Sugar coating demands more time and different mixing conditions.

Start with the tablets themselves. Fragile cores can chip inside an aggressive coating pan. Deep tablet edges may require stronger mixing and carefully positioned spray guns. The equipment should provide steady tablet movement, uniform spray coverage, and rapid drying. Adjustable airflow matters. Too much air can create rough surfaces, while too little air may cause sticking.

Check the spray system, pump range, nozzle design, and cleaning access. A small pilot unit helps confirm process settings before production scale-up. Measure inlet temperature, exhaust temperature, spray rate, pan speed, and coating weight gain. Keep records. They reveal problems that visual checks can miss. A common mistake is choosing capacity by batch weight alone. Tablet volume, airflow demand, and drying efficiency also affect performance. I would review these assumptions again. Real production often behaves differently than a trial batch. Operators need clear controls, safe access, and repeatable cleaning procedures. Equipment selection should support documented quality checks and applicable manufacturing requirements.

Match Coating Equipment to Tablet Type and Production Scale

How to Choose Equipment for Tablet Coating?

Match Coating Equipment to Tablet Type and Production Scale

Tablet shape, hardness, and surface texture should guide the coating equipment choice. Round, robust tablets usually move well in a conventional perforated coating pan. Caplet-shaped or fragile tablets need gentler mixing and carefully controlled drum speed. Deep logos and sharp edges can collect spray, causing dark spots or uneven film coverage. Small tablets may require finer spray control and shorter gun-to-bed distances.

Production scale changes the decision. A laboratory pan supports formulation trials and uses less coating suspension. However, its airflow may not predict commercial drying behavior. Medium-scale equipment should provide stable inlet temperature, adjustable exhaust, and reliable spray-rate control. Large batches need stronger air handling, balanced spray guns, and accurate load measurement. Operators should check whether the equipment can maintain tablet movement without excessive abrasion.

Moisture-sensitive tablets need fast drying and precise humidity control. Heat-sensitive tablets require lower inlet temperatures and careful monitoring of tablet-bed temperature. Enteric or functional coatings often demand consistent spray patterns and sufficient mixing time. Cleaning access also matters, especially when changing coating colors or formulations. A pilot run can reveal problems that specifications miss. No selection is perfect. Production data, defect records, and operator experience should shape the final decision.

How to Choose Equipment for Tablet Coating? - Match Coating Equipment to Tablet Type and Production Scale

Practical selection guide based on tablet characteristics, coating objectives, batch size, and process requirements

Tablet Type / Product Need	Recommended Equipment	Typical Production Scale	Typical Working Capacity	Suitable Coating Objectives	Key Selection Criteria	Main Advantages	Important Limitations
Immediate-release tablets Standard film coating for identification, appearance, taste masking, or handling protection	Perforated pan coater	Pilot to large-scale batch production	Approximately 5–1,000 kg per batch, depending on pan size and fill level	Aqueous or organic film coating; colored or clear coatings	Pan diameter, spray rate, inlet-air capacity, exhaust-air handling, tablet friability, and required batch size	Good heat and mass transfer; repeatable coating uniformity; suitable for broad production ranges	Higher capital and cleaning requirements than basic conventional pans; process development is required for fragile tablets
Small development or clinical batches Frequent formulation changes and limited material availability	Small perforated pan coater or laboratory-scale coating system	Laboratory, formulation development, and clinical supply	Approximately 0.2–10 kg per batch	Early film-coating trials, color matching, taste masking, and process screening	Minimum working load, small-volume spray capability, cleaning time, data logging, and scale-up relevance	Low material consumption; fast changeover; useful for comparing coating formulations	Small equipment may not reproduce full-scale airflow, drying, or tablet-bed behavior exactly
High-volume conventional tablets Stable products manufactured in repeated commercial batches	Large perforated pan coater with automated spray and process control	Commercial and high-volume production	Approximately 300–1,500 kg per batch, subject to tablet density and equipment design	Standard film coating, high-throughput color coating, and moisture-protective coating	Throughput, drying capacity, number of spray guns, exhaust filtration, containment, and automated recipe control	High productivity; reduced operator dependence; consistent processing across repeat batches	Less economical for small batches; long cleaning and setup times can reduce flexibility
Fragile, friable, or chipped tablets Products requiring gentle handling and controlled mechanical stress	Perforated pan coater with gentle tablet handling and optimized baffle design	Pilot to commercial scale	Approximately 5–1,000 kg per batch	Protective film coating and low-solids coating systems	Baffle geometry, pan speed range, tablet-bed depth, drop height, spray pattern, and drying uniformity	Better control of attrition and tablet breakage than poorly configured conventional equipment	May require longer processing time and careful adjustment of pan speed and spray rate
Modified-release tablets Products requiring controlled drug release over a defined period	Perforated pan coater with precise spray-rate, temperature, and airflow control	Development through commercial production	Approximately 1–1,000 kg per batch	Functional polymer coating, enteric coating, sustained-release coating, or moisture barrier	Coating-weight-gain accuracy, spray distribution, drying control, process reproducibility, and in-process testing	Supports precise coating build-up and controlled process conditions	Small variations in coating thickness or tablet movement can affect dissolution performance
Enteric-coated tablets Tablets designed to resist gastric conditions and release in the intestine	Perforated pan coater with accurate aqueous or solvent-based spray control	Pilot, validation, and commercial batches	Approximately 5–1,000 kg per batch	Seal coating, enteric functional coating, and protective overcoating	Uniform coverage, controlled weight gain, product temperature, inlet-air dew point, and solvent-safety requirements	Good control of coating thickness and drying conditions for dissolution-sensitive products	Requires rigorous process validation; incomplete coverage may cause premature drug release
Multiparticulates, pellets, or mini-tablets Small units requiring fluidization and high surface-area coating	Fluid-bed coater with bottom-spray or top-spray configuration	Laboratory to medium-scale production	Approximately 0.1–300 kg per batch, depending on product density and chamber design	Functional release coating, taste masking, layering, and moisture protection	Particle-size distribution, fluidization velocity, nozzle position, filter design, and electrostatic control	Efficient heat and mass transfer; suitable for coating small individual particles	Not ideal for large, dense tablets; excessive airflow can cause attrition or product loss
Effervescent or moisture-sensitive tablets Products requiring strong protection from humidity	Perforated pan coater in a controlled low-humidity room, or a suitable fluid-bed system for small units	Development to commercial production	Approximately 1–1,000 kg per batch	Moisture-barrier coating and protective film coating	Room humidity, dehumidification capacity, coating-solution water content, drying efficiency, and packaging compatibility	Can reduce moisture uptake when coating and environmental controls are properly matched	Coating alone may not provide sufficient protection without moisture-resistant packaging
Continuous, high-throughput production Stable products with demand for uninterrupted manufacturing	Continuous tablet coater	Large-scale, repeat commercial production	Commonly specified by throughput, approximately 100–1,000 kg per hour depending on design	Standard film coating for products with stable formulations and consistent demand	Residence-time distribution, feed-rate stability, spray-zone control, line integration, and continuous quality monitoring	High utilization and reduced batch-to-batch variability; efficient for steady production schedules	Higher development complexity; less flexible for frequent product changes and small campaigns

Note: Capacity ranges are typical planning values rather than fixed equipment specifications. Actual selection should be confirmed using tablet dimensions, bulk density, friability, coating weight gain, solvent system, required throughput, cleaning strategy, containment needs, and applicable regulatory requirements.

Evaluate Key Equipment Features, Capacity, and Process Control

Choosing tablet-coating equipment starts with measurable process needs, not the largest available machine. The 2024 MarketsandMarkets report estimates steady growth in pharmaceutical processing equipment, driven by higher demand for controlled and flexible production. Evaluate pan diameter, usable volume, spray rate, and batch-size range together. A machine running at 30% load may waste energy and reduce coating uniformity. Too much headroom can be costly.

Process control deserves closer attention. Select equipment with accurate inlet-air temperature measurement, adjustable airflow, humidity monitoring, and responsive exhaust control. Spray nozzles should support consistent atomization across the tablet bed.

The FDA’s Process Validation guidance emphasizes documented control of critical process parameters and material attributes. Record coating weight gain, product temperature, and spray pressure during every development run. Small deviations matter.

Capacity claims can be misleading. Check the actual working volume, not only the vessel’s maximum volume. Review cleaning time, inspection access, recipe security, and data integrity functions.

The ISPE Baseline Guide for oral solid dosage manufacturing highlights equipment design, containment, and cleanability as important lifecycle considerations. I would not over-automate a process that operators cannot troubleshoot. A perfect specification rarely survives production. Pilot trials should expose dead zones, uneven spray patterns, and drying limits before commercial purchase. Some decisions will still require revision.

Compare Spray Systems, Drying Methods, and Material Compatibility

Choosing tablet-coating equipment starts with the spray system, not its polished exterior. In production trials, I compare nozzle pattern, droplet size, spray distance, and pump stability. A two-fluid nozzle creates fine droplets, but excessive atomization can dry coating before impact. That produces rough, dusty surfaces. Peristaltic pumps support accurate formulation control, yet tubing wear can change flow rates. Check it daily. Rotary spray arms suit consistent batches, while intermittent systems may reduce overwetting during early development. The correct setting depends on tablet shape, coating solids, and target weight gain.

Drying methods control appearance, temperature, and coating efficiency. Heated air removes moisture quickly, but high inlet temperatures can soften cores or harm heat-sensitive ingredients. I monitor inlet and exhaust temperatures, airflow, humidity, and tablet-bed temperature together. Test it early. Airflow must reach the entire bed, including tablets near the pan wall. Poor distribution leaves tacky patches beside overly dry areas. I once increased airflow to shorten a cycle and caused spray-drying losses. The faster process was not better.

Material compatibility requires testing before scale-up. Stainless steel usually resists common aqueous coatings, but acidic, alkaline, or solvent-containing formulas need careful review. Gaskets, tubing, filters, and nozzles may swell, shed particles, or absorb active ingredients. Run a small trial with the actual suspension. Measure viscosity after mixing and recirculation. Inspect tablets for color variation, logo bridging, cracks, and adhesion. Some failures appear only after storage, so accelerated stability checks remain important.

Assess Safety, Maintenance, Compliance, and Total Operating Cost

Choosing Equipment for Tablet Coating

Safety should guide the equipment decision from the first site visit. A well-designed coating system limits operator exposure to powders, solvents, and cleaning chemicals. Check enclosure integrity, airflow control, emergency stops, and access points. Small gaps around doors can create serious cleaning and containment problems.

Maintenance affects production more than many purchasing teams expect. Inspect spray nozzles, pumps, filters, seals, and drive components before approval. Ask how quickly technicians can reach these parts. Easy access shortens planned maintenance and reduces awkward work inside the coating pan. Keep critical spares nearby. A low purchase price can become expensive after repeated stoppages. Energy use also matters. Compare heating demand, exhaust volume, compressed air consumption, and cleaning time under realistic batch conditions.

Compliance requires more than a certificate in a file. The equipment should support documented cleaning, calibration, process validation, and change control. Review data records, alarm histories, and user permissions with quality personnel. Confirm that materials match the process and cleaning agents. Local requirements may differ, so technical and regulatory teams should assess the installation together. One weakness remains common: teams sometimes estimate only the equipment price. Total operating cost includes training, utilities, labor, validation, spare parts, waste handling, and downtime. Run a simple three-year cost model using actual batch schedules. Then challenge its assumptions. Forecasts are useful, but they are rarely perfect.

How to Choose Equipment for Tablet Coating?

Assess safety, maintenance, compliance, and total operating cost before selecting a tablet-coating platform.

The chart uses a normalized 1–5 engineering score, where 5 represents the more favorable condition for equipment selection. Perforated-pan systems generally provide straightforward maintenance and strong process familiarity, while fluid-bed systems can offer efficient drying and containment but may require more specialized maintenance and air-handling controls. Final scores should be verified against the intended formulation, batch size, solvent classification, cleaning strategy, and site-specific operating costs.
